Brand New Upgraded Outdoor Waterproof Beam Light

Scan WeChat QR code
to learn more

Parameters

Demonstration

Video

Technical Parameters:
Latest Mainboard Program: Supports RDM function, built-in programs: multiple built-in effect programs, capable of single white beam slow pan left and right, single beam color change slow pan left and right, and multiple beam color change slow pan left and right.
Voltage: Wide voltage 110V-240V 50-60Hz
Light Source: Original Osram Power: 450W / 550W
Color: Color wheel: 13+1 seven-color rainbow effect, fog function
Gobo: Gobo wheel: 13 fixed gobos, 1 white light
Focusing: Electronic linear HD motorized focus with high-density optical glass lens.
Linear dimming curve: 0%-100% linear dimming
Beam Angle: 1.8°
Channels: 16/20 international standard DMX512 channels.
XY Motor: Three-phase motor drive, strong, faster, more stable, quieter
Control Mode: DMX 512, self-running, master-slave self-running
Prism: 8-facet prism, can rotate, macro functions
Fan drive performance is excellent, noise is very low.
Control Mode: DMX 512, self-running, master-slave self-running
Display: LCD display suitable for different installation positions
Horizontal/Vertical: Waterproof fixtures can perform 540° horizontal or 270° vertical scan, fast and smooth,
Fixture has intelligent photometric reset correction system, occasional malfunctions can automatically return
to the original position. In addition, with horizontal and vertical lock buttons for easier maintenance and transportation.
Cooling System:
Using CFD software for fixture thermal flow analysis calculation, designed low-noise cooling system
Fan drive performance is excellent, noise is very low.
Waterproof Rating: IP65

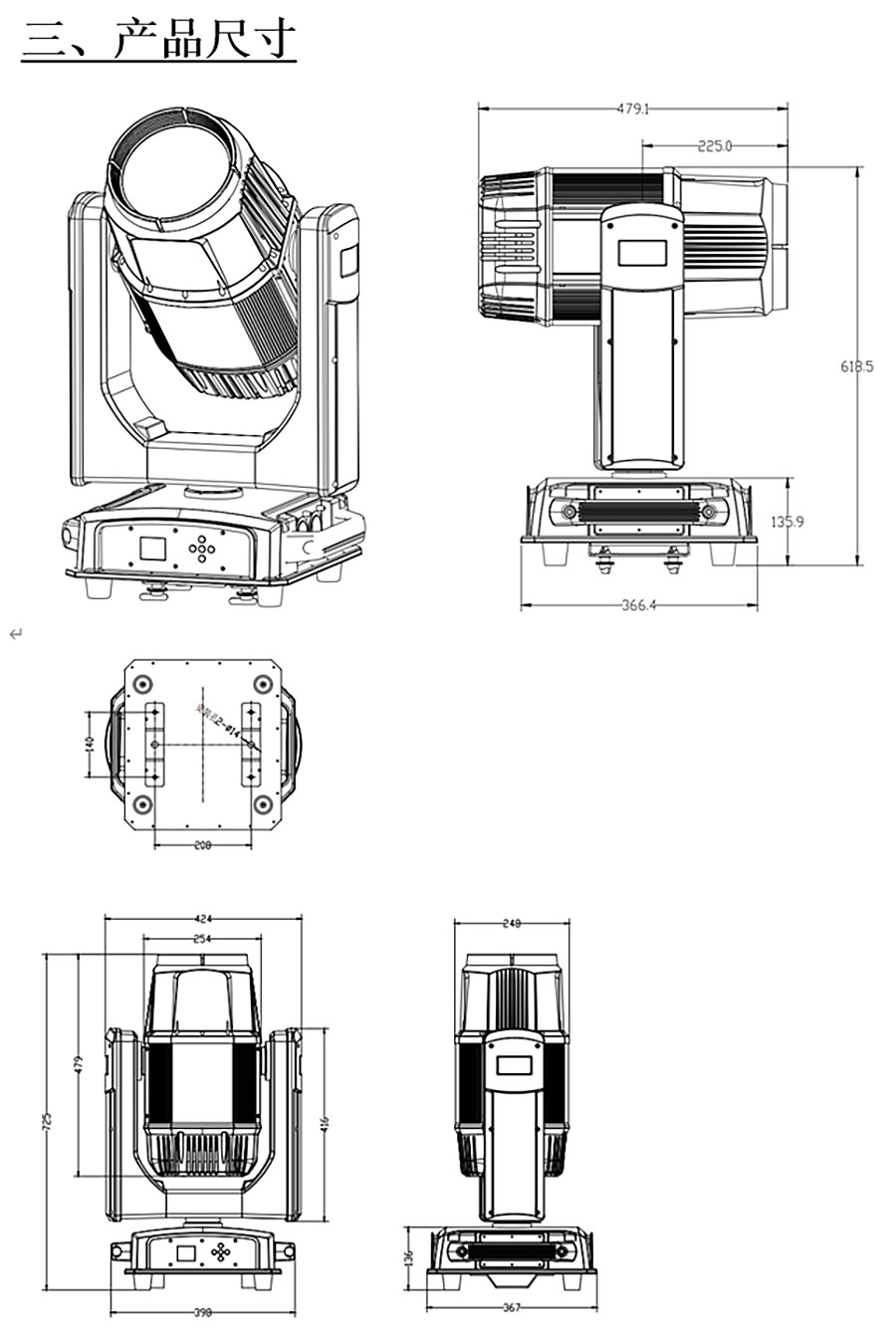

Net Weight: 27Kg Dimensions: 424*367*725mm
Gross Weight: 33.28KG Packaging Dimensions: 601*530*735mm
Double Aviation Case Dimensions: 92*47*90cm Weight: 93kg
Appearance: The fixture uses high-strength engineering nylon plastic, UV treated, high temperature resistant, anti-aging, high-temperature die-cast aluminum housing, lightweight, utilizing airflow guidance and intelligent temperature monitoring technology for fast heat dissipation!
Features: Compact in appearance, immense energy, thick light beam
The waterproof beam light reaches industry high standards in optics, structure, and appearance. It uses advanced technology, high-brightness light source, optical technology, and meticulous industrial design to ensure perfect presentation of lighting design.
