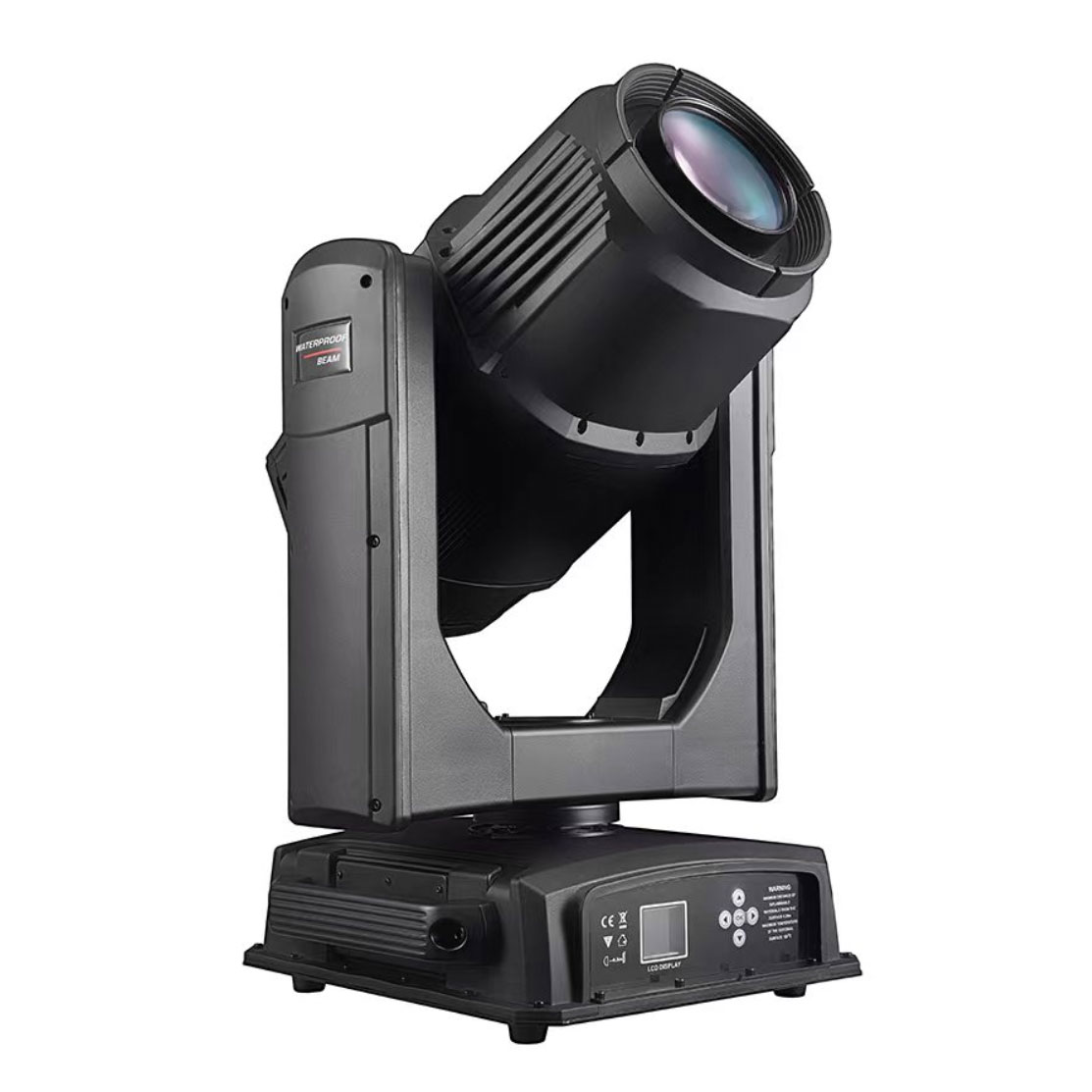

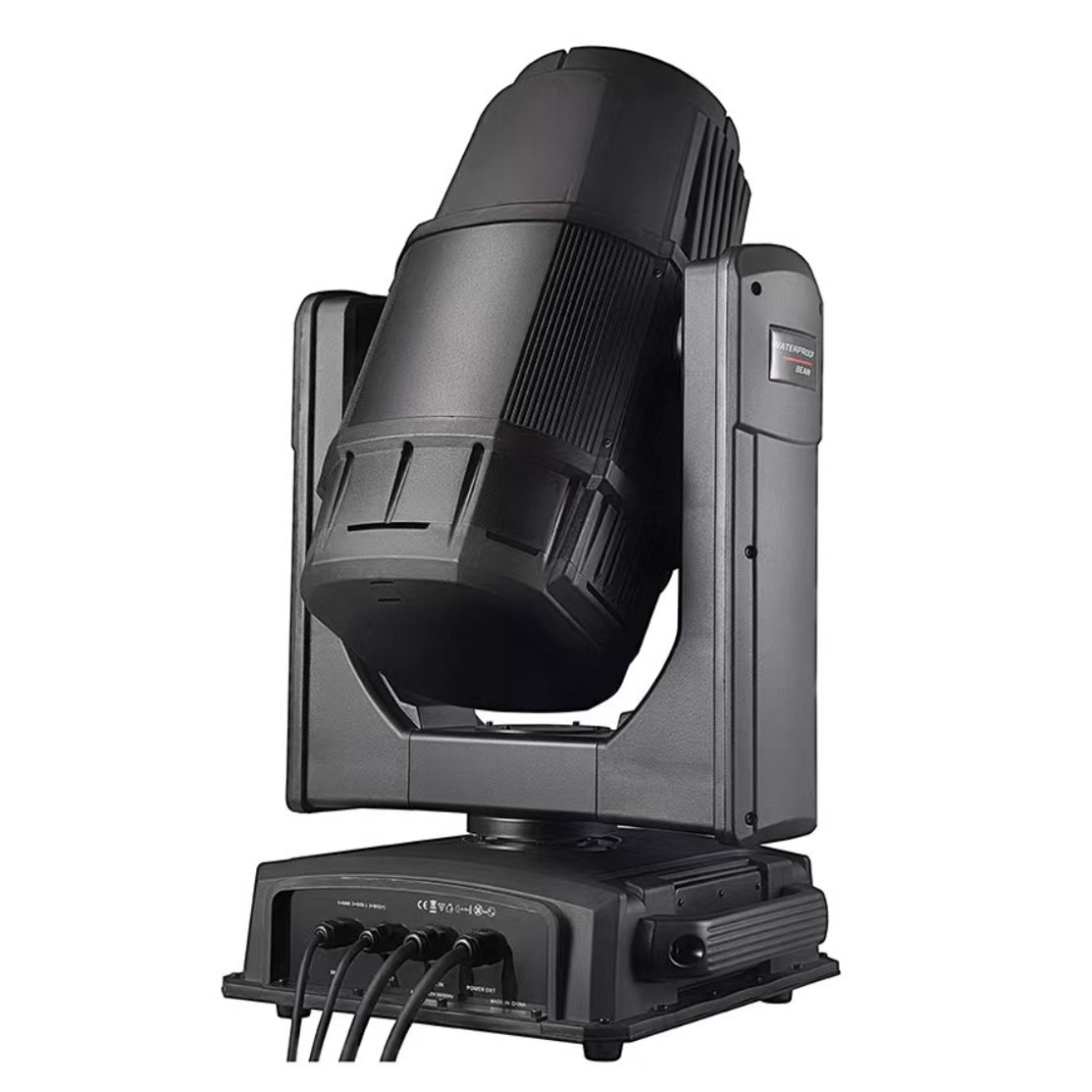

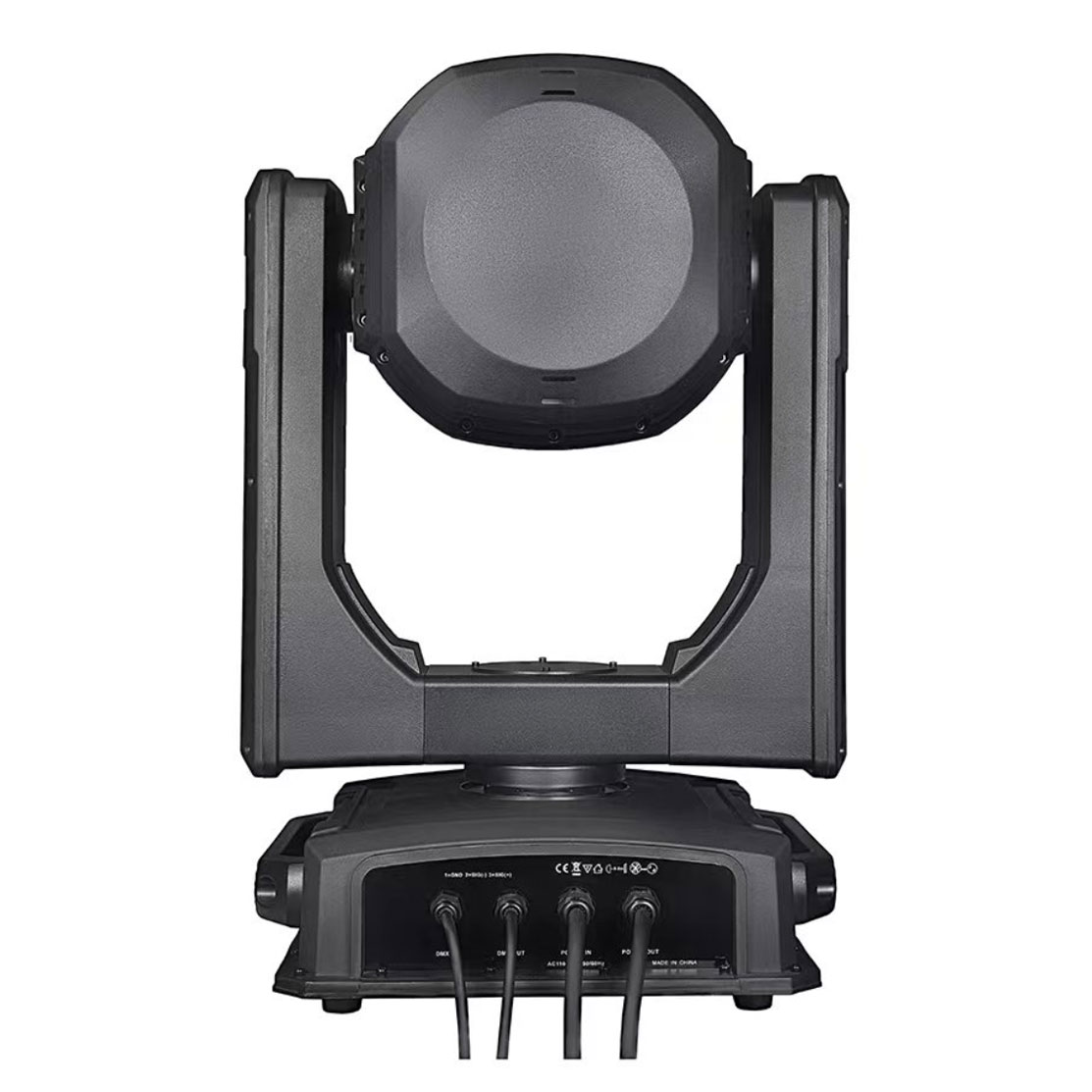

Newly upgraded three in one waterproof beam light
-
AQXE舞台灯光
Scan WeChat QR code
to learn more
Parameters
Demonstration
Video
Technical Specifications:
Latest motherboard program: Supports RDM function
Voltage: 100-240V, 50/60Hz
Power: 480W/580W
Color palette: One color palette with 13 color chips and 1 white light
Pattern plate: Two pattern plates, fixed pattern plate with 14 patterns+white light, rotating pattern plate with 9 pattern pieces, customizable customer LOGO, patterns can be linearly infinitely enlarged and reduced
Rotating pattern piece diameter: 15.8 mm Effective inner diameter: 12mm
Effect wheel: It can rotate a circular octaprism, with 0-100% mechanical dimming, supporting mechanical and adjustable strobe effects, and supporting strobe macro function.
Lens group optical system, electric focusing, beam angle of 2-43 °.
Adopting a photoelectric reset system, it can automatically retrieve the reset in case of accidental misoperation.
Channel mode: 20 channel mode.
The rotation angle is 540 ° horizontally with a resolution of 8Bit/16Bit, 270 ° vertically with a resolution of 8Bit/16Bit.
Overheating protection. IP protection level: IP56 electronic rectifier.
The fan drive has excellent performance and extremely low noise.
Control mode: DMX 512, self-propelled, master-slave self-propelled
Display screen: LCD display screen adapts to different installation positions
Horizontal/Vertical: Waterproof lamps can be scanned horizontally at 540 ° or vertically at 270 °, with fast and stable speed,
The lighting fixture is equipped with an intelligent photoelectric reset correction system, which can automatically respond to accidental misoperation
The original location. In addition, it has horizontal and vertical locking buttons, making maintenance and transportation more convenient.
Cooling system:
Using CFD software to analyze and calculate the heat flow of lighting fixtures, and design a low-noise heat dissipation system
The fan drive has excellent performance and extremely low noise.
Waterproof rating: IP65
Net weight: 28Kg Dimensions: 424 * 367 * 725mm
Gross weight: 35KG Packaging size: 495 * 460 * 820mm
Double pack aviation box size: 92 * 47 * 90cm Weight: 93kg
